Durlon® Flexible Graphite – FGS95
Flexible Graphite is unaffected by heat over a wide range of temperatures. It exhibits low electrical resistivity and high thermal conductivity and is suitable for cryogenic temperatures. Durlon® Flexible Graphite is suitable for applications in automotive, refining and petrochemical plant processes. Durlon® Flexible Graphite is available in several styles. These include homogeneous sheet and laminated styles with various types of core materials.

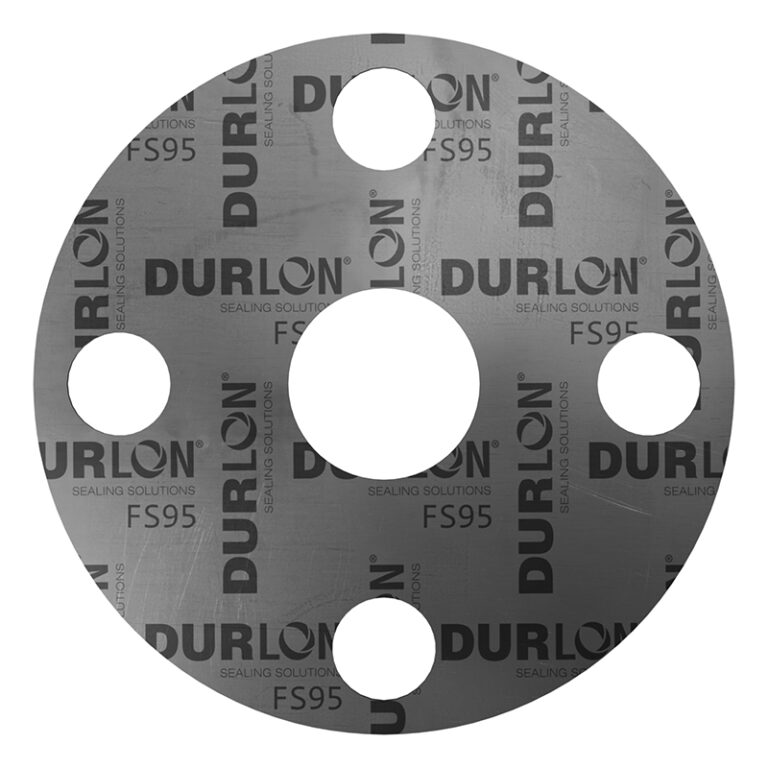

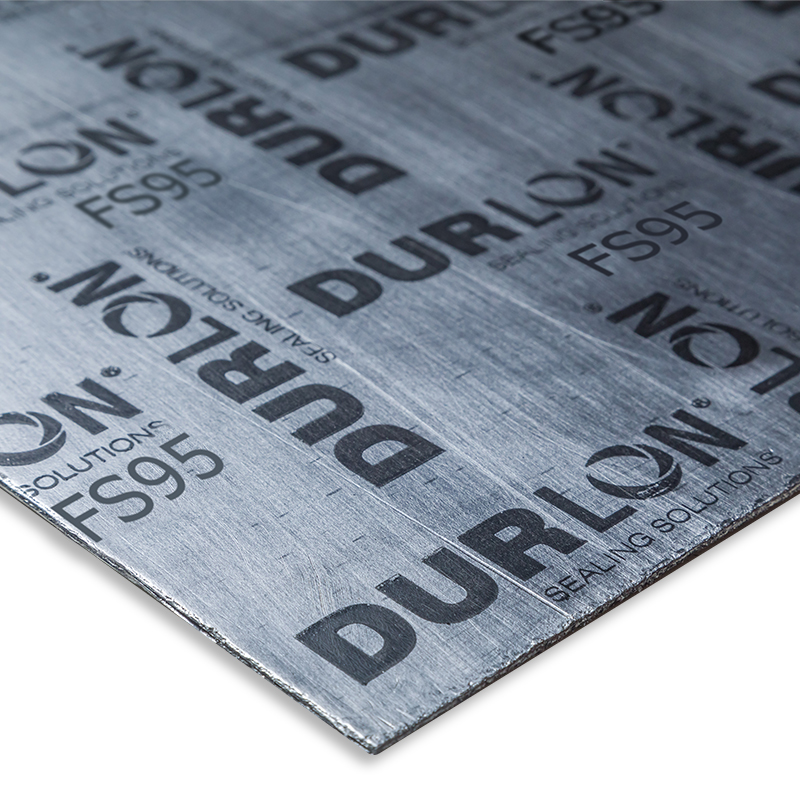

FGS95 Style - Standard industrial grade sheet containing no binders or resins. This product is used in industrial applications such as oil refineries, power plants and chemical process plants.
|Industries||Chemical Processing , General Industry , OEM Services , Oil & Gas , Petrochemical , Power Generation , Refining|
|Min Temp:||-260°C (-450°F)|
|Max Temp (air):||454°C (850°F)|
|Max Temp (steam):||650°C (1200°F)|
|Pressure, max, bar:||207 (3,000 psi)|
|Compressibility, % ASTM F36:||35-40|
|Recovery, % ASTM F36:||20|
|Creep Relaxation, % ASTM F36||5|
|Ignition Loss, % @ 454°C (850°F)||1|
|Ignition Loss, % @ 650°C (1200°F)||8|
|Sealability, ASTM F2378||0.4 cc/min|
|ASTM F104 & F868 Line Call-Outs||F104-F517000B1M3|
|Carbon Content, %:||≥98|
This is a general guide only and should not be the sole means of accepting or rejecting this material. The data listed here falls within the normal range of product properties but should not be used to establish specification limits nor used alone as the basis of design.
Certification applies to gasket material used
