The railroad tank car industry plays a critical role in transporting liquids and gases across vast distances efficiently and safely. Their robust design and load capacity serve a multitude of industries from food products to clay slurry, chemicals to crude oil, tank cars are a workhorse of the global economy, bringing vital products to market.
We provide high performance gaskets for rail tank car manways, components, and flanged connections for a wide range of applications in high temperature, air, water, acids, oils, steam, and various chemical environments.
Our large selection of polytetrafluoroethylene (PTFE), compressed non-asbestos (CNA), fluoroelastomer FKM, Viton®, a wide variety of elastomers and other synthetic rubber product technologies (including EPDM) are guaranteed to provide exceptional sealing properties.
Durlon rail-tank car gaskets are engineered to address the challenges related to safe railway transportation of many commodities and hazardous chemicals. From manway lids to bottom outlet valves and flange connections, Durlon provides fluid sealing solutions for numerous tank-car applications.
Non-Accident Releases, or NARs, oftentimes result in costly and potentially dangerous situations. With a focus on eliminating NARs, Durlon rail-tank car gaskets give tank-car manufactures, lessors, shippers, and repair shops the fleet-flexibility and process safety needed to combat these challenges. Reducing product loss helps increase safety and reduces possible environmental effects.

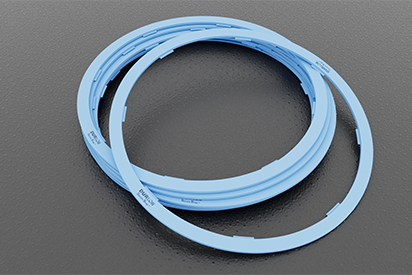

Our next level of Railroad Tank Car Manway sealing features a single “Universal Style” gasket that can accommodate several model sizes. The flexibility of the SecureSnap® manway gasket enables the user to install the gaskets more quickly than the conventional styles. Flexible tabs easily snap into the groove bottom, eliminating the need for tight tolerances associated with conventional style gaskets. Note: Patent pending.
The Challenge:

Conventional rail tank car manway gaskets require precise dimensional tolerances to fit securely within dovetail grooves. Variations in gasket dimensions may complicate installation, affect gasket retention, and increase manufacturing scrap. Improper gasket positioning can compromise sealing performance and increase the risk of leakage or non-accidental releases (NARs).
The Solution:

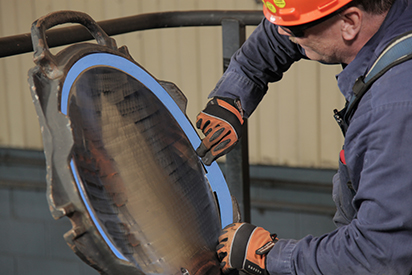

The increased flexibility of the SecureSnap® manway gasket enables the user to install the gaskets more quickly than the conventional gasket. The improved “tapered tab” design follows the angle of the dovetail groove taper, allowing the SecureSnap® manway gasket to easily snap into place. Thus, the time required to install the SecureSnap® gasket is significantly less than the time required to install a standard manway gasket.
“A single gasket universally fits the AAR-1, TRN-1, and TRN-2 manway models.”
Utilizing a patented manufacturing process, the SecureSnap® technology incorporates the Durlon® 9000 sealing features as well as elastomer gasketing material to help insure a tighter seal and superior bolt load retention in less than ideal bolting conditions.
The Benefits:

SecureSnap® is available for AAR-1, TRN-1, and TRN-2 manway styles, providing application flexibility across supported tank car configurations.
Its retention design can simplify gasket installation and reduce the risk of gasket displacement during assembly. Where approved for the applicable manway systems, common gasket configurations may also help distributors and maintenance facilities consolidate inventory and reduce associated costs.
Download the Durlon® SecureSnap® Technical Data Sheet here.
Below is a list of other Durlon® gasket recomendations for the Railroad Tank Car Industry:
