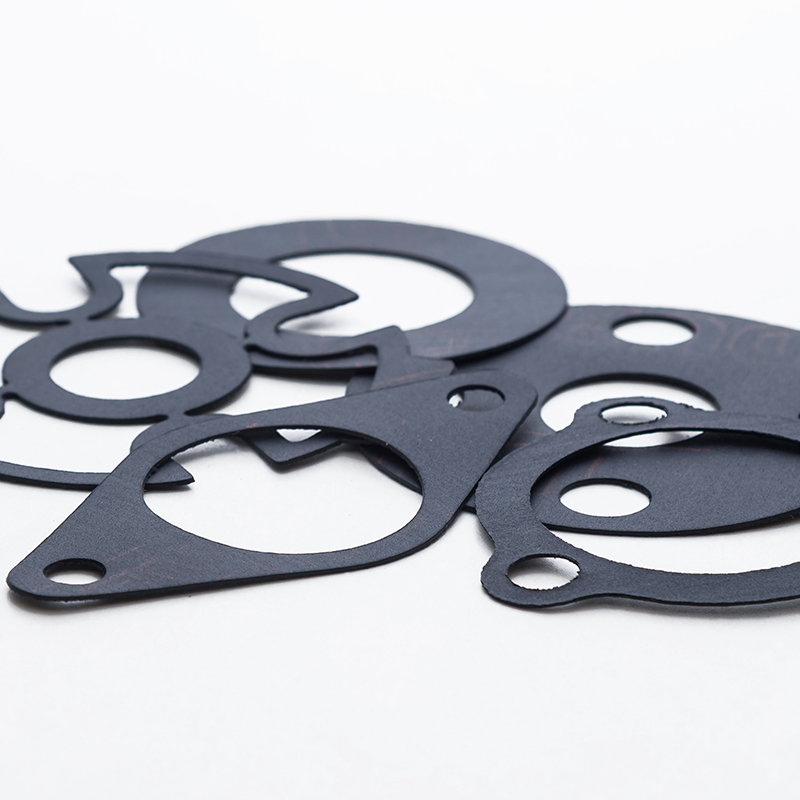

Durlon® 9400 is a high performance filled PTFE gasket material designed for use in piping and equipment, chemical, and other general industrial applications where resistance to highly aggressive chemicals (including hydrofluoric acid) is required. Durlon® 9400 can also be used as the gasket of choice for anhydrous hydrogen fluoride (AHF) in railroad tank cars and a good alternative for use in plants where barium sulfate filled PTFE may not be suitable.
|Industries||Chemical Processing , Food & Beverage , General Industry , Heavy Industrial , Marine , Mining , OEM Services , Oil & Gas , Petrochemical , Pharmaceutical , Power Generation , Pulp & Paper , Rail-Tank Car , Refining , Water & Wastewater|
|Pressure, max, bar (psi)||103 (1,500)|
|Density, g/cc (lbs/ft3)||2.1 (131)|
|Creep Relaxation, %||30|
|Tensile Strength, MPa (psi)||14.5 (2,100)|
ASTM 2378 (Nitrogen)
|Volume Resistivity, ohm-cm ASTM D257||61|
|Dielectric Breakdown, ASTM D149, kV/mm (V/mil)||1 (33)|
Note: ASTM properties based on 1/16″ sheet thickness except ASTM F38, which is based on 1/32″ sheet thickness. This is a general guide only and should not be the sole means of accepting or rejecting this material. The data listed here falls within the normal range of product properties but should not be used to establish specification limits nor used alone as the basis of design.
*For applications above Class 300, consult your representative.
|RoHS Reach Declaration||Compliant|
|HFIPI – Materials of Construction Guideline||Approved Material|
|Y psi (MPa)||2,765 (19.1)||–|
|Gb psi (MPa)||1,701 (11.7)||1,412 (9.7)|
|Gs psi (MPa)||99 (0.68)||248 (1.7)|
