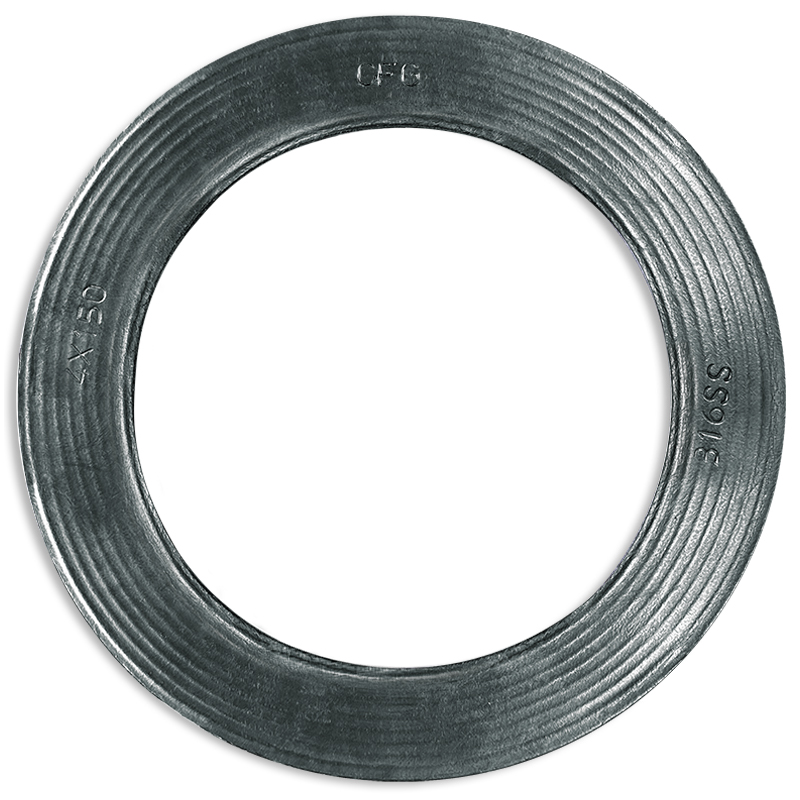

Durlon® CFG

Durlon® CFG is a corrugated, flexible graphite gasket material designed for severe service conditions. The proprietary design of the corrugations gives CFG superior sealing and recovery characteristics for tough conditions in the refining, chemical, petrochemical and pulp and paper industries. Durlon® CFG is suitable for service in steam, oil, water, mild alkalis, mild acids, hydrocarbons and solvents.

Industries	Chemical Processing , Food & Beverage , Marine , Mining , OEM Services , Oil & Gas , Power Generation , Primary Metals , Pulp & Paper , Water & Wastewater

Category: Low Seating Stress Gaskets , Semi-Metallic Gaskets

Durlon® CFG is a corrugated, flexible graphite gasket material designed for severe service conditions. The proprietary design of the corrugations gives CFG superior sealing and recovery characteristics for tough conditions in the refining, chemical, petrochemical and pulp and paper industries. Durlon® CFG is suitable for service in steam, oil, water, mild alkalis, mild acids, hydrocarbons and solvents.

Temp. Min. Temp. Max. Continuous, Max	-200°C (-328°F) 650°C (1,200°F) 550°C (1,022°F)
pH Range, Room Temp.	0-14
Pressure, max, bar (psi)	207 (3,000)

Fire Test	API 6FB
RoHS Reach Declaration	Compliant

	3/32”
G_b psi (MPa)	557 (3.84)
a	0.325
G_s psi (MPa)	2.21 (0.015)
m	2.6
Y psi (MPa)	3,770 (26.0)

Durlon® CFG
